All in one Tri-mode TV tuner: DVB-S digital Satellite, DVB-T digital Terrestrial and Analogue TV (PAL/SECAM) on your PC!

• Tri-mode TV receiver for your PC! Watch and record digital satellite, Freeview digital and analogue cable TV on your PC.
• Listen to digital DVB-T (not DAB) or DVB-S radio.
• Schedule your TV recordings using high quality MPEG-2/4. Also includes free 7-day EPG for Freeview DVB-T.
• Includes analogue A/V inputs and SoftPVR™, for video recording from VCR or camcorders.
• With ergonomic remote control.

WinTV-HVR-3300 features

• Triple format TV tuner for your PC! Analogue TV, Freeview High Definition DVB-T Digital terrestrial TV and DVB-S Digital satellite TV in a single slot PCIe board.
• Watch TV in a window or in full screen with our latest WinTV7 Full HD application. Watch any or all of the three TV formats on your PC.
• Record DVB-T and DVB-S digital TV to your PC's hard disk, using high quality MPEG-2
• Record analogue TV to your PC's hard disk using our MPEG-2/4 decoder™.
• Pause digital or analogue TV, with instant replay.
• With the integrated Scheduler/TV Guide on WinTV7, you can schedule your TV recordings on a daily, weekly or once only schedule. And our free 7 day EPG (Not MHEG5) for DVB-T makes recording your TV programmes a snap! Note: Recordings will typically take 1.5Gb of disk space per hour.
• Listen/record Digital DVB-T or DVB-S radio, too!
• Auxiliary audio/video input for analogue video sources such as camcorders or VCR's. Record your home videos with our latest WinTV7 Decoder™.
• AC3, AAC or HEAAC ausio support for digital and NICAM Stereo for analogue TV.
• Receive Teletext via analogue or Digital or Satellite TV.
• DiSEqC 1.0 supported with DVB-S digital satellite.
• Includes Hauppauge IR remote control, for easy control of TV watching, record and play functions.
• Compatible with Windows Media Center for DVB-T.

With WinTV-HVR-3300 you can:

• Triple mode free-to-air TV receiver:
  • Digital satellite DVB-S.
  • Digital terrestrial High Definition DVB-T Freeview.
  • Analogue PAL/SECAM TV.
• Record Digital TV and digital radio (Not DAB) in high quality MPEG-2/4.
• Record Analogue PAL/SECAM TV or your personal videos (using the A/V inputs) in MPEG-2/4 formats.
• Pause Digital or Analogue TV, with instant replay.
• Listen to DVB-T and DVB-S digital radio too!
• Schedule your TV recordings with the integrated WinTV7-Scheduler. Also included is the Hauppauge 7-day Electronic Program Guide for DVB-T!
• Includes Hauppauge IR remote control for easy operation.

All in one Trimode TV tuner DVB-Satellite + DVB-Terrestrial + Analogue Television and Teletext on your PC!

Triple mode TV receiver for your PC. WinTV-HVR-3300 has three different TV receive modes; analogue PAL/SECAM TV, digital High Definition DVB-T and digital DVB-S. Watch analogue, digital Freeview or digital satellite TV all on your PC screen!

Digital Television is the TV of the future, providing sharper TV pictures and near CD quality audio. But if you cannot currently receive digital TV, the WinTV-HVR-3300 can still be used to watch and record analogue TV from a TV aerial. But you can add DVB-T or DVB-S digital TV reception at any time. Best of all, when receiving both digital and analogue TV, our WinTV appliction allows you to switch between analogue and digital channels seamlessly. Plus pause digital TV with instant replay, too!

Free-to-air DVB-S digital satellite TV & radio on your PC! Bring hundreds of high=quality digital satellite TV channels to your PC (DiSEqC 1.0* is supported)! Watch and record satellite TV from different countries.

Freeview DVB-T digital terrestrial TV & radio on your PC!Watch more than 50 Freeview digital terrestrial TV broadcasts including High Definition TV and digital terrestrial radio on your PC, through your rooftop aerial*.

Analogue TV via terrestrial antenna. Connect the WinTV-HVR-3300 to a terrestrial antenna and watch TV with great stereo audio. Record your TV shows in MPEG-2/4 formats using our Latest WinTV7 software. You can also receive analogue or Digital teletext on your PC screen!

Watch and record videos from your VCR or camcorder - Attach your external video source to the audio and video inputs to watch analogue video on your PC. Record your personal video to your hard disk in MPEG-2/4.

Digital Video Recorder: Record anlaogue, DVB-T or DVB-S TV in high quality MPEG! Schdule your digital TV recordings with our WinTV-Scheduler. For DVB-T users, record TV programs daily or weekly via our free 7 day DVB-T Electronic Program Guide (Doesn't support MHEG5).

Hauppauge's remote control makes the WinTV-HVR-3300 easy to use - change channels, adjust audio volume, start recordings, all from the Hauppauge ergonomic remote control!

Notes:

• For Digital Terrestrial reception, a high gain aerial is recommended. The WinTV-HVR-3300 uses a rooftop aerial for DVB-T reception in the same way that most people currently receive their analogue television programmes. Some viewers will need to replace their aerials to receive digital transmissions if the installation is old or in poor condition. Digital Terrestrial coverage is improving all the time as digital terrestrial television transmitters are continuously being updated. However it may take some time for coverage to reach particular areas of the country.
• DVB-S/DVB-T Radio is not DAB Radio.
• For Digital Satellite reception, your satellite dish must be aimed at a satellite which is transmitting fre-to-air Sat TV. For example, Astra and Eutelsat provide free-to-air satellite channels.
• To use the WinTV-HVR-3300 for TV with the Windows XP MCE 2005, Media Center application a Media Center certified DVD or MPEG-2 software decoder is required. If you are building a Media Center PC, refer Microsoft's web site for a list of Media Center certified DVD decoders. The Windows Media Center application is included with Windows XP MCE 2005, Windows Vista Ultimate and Windows Vista Home Premium edions only and all versions of Windows 7. The enclosed remote control is not MCE certified and does not replace Media Center remote control.
• The WinTV-NOVA / WinTV-HVR uses a rooftop antenna in the same way that most people currently receive their analogue television programmes. Digital Terrestrial coverage is improving all the time as digital terrestrial television transmitters are continuously being deployed.
• For Singapore residence, some DVB-T reception with indoor antenna might be impaired by walls and high neighboring buildings/structures/trees. In such environments, an outdoor / roof-top DVB-T antenna is recommended. If you are using roof-top antenna with amplified signal, in theory, you should not encounter any reception problem and you should be able to receive all free-to-air DVB-t channels available in Singapore (Digital8, Digital5 and CNA on Channel 28 And HD5 on Channel 29).

Please note that Starhub SCV point in Singapore is not for DVB-t reception.

Hauppauge also reserves the right to make improvements and/or changes to the product, programmes and/or specifications described in the above information at any time without notice.

System Requirements

• Minimum processor recommended:
  • 2.0 GHz Intel® P4 or equivalent for TV watching and 3.0 GB or baove for HD TV.
  • 2.8 GHz Intel® P4 or equivalent for analogue TV recording in MPEG-2.
• Microsoft Windows XP (32 & 64bit) with SP3 or Microsoft Windows Vista (32 & 64bit) or Windows 7 (32 & 64bit).
• Graphics with 64 MB of memory (minimum), 128MB or more for HD TV.
• Sound card or on board sound.
• A free PCIe slot.
• CD-ROM drive (for Software installation).

Included in the box

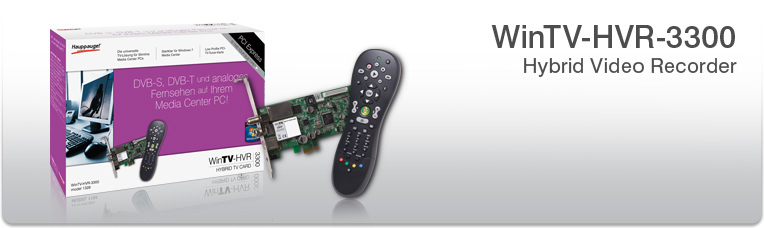

• WinTV-HVR-3300 PCIe card with built-in DVB-S, DVB-T, PAL/SECAM TV receivers, S-Video, Composite and stereo audio inputs.
• IR remote control transmitter and 2 batteries.
• IR remote control receiver/blaster cable.
• WinTV7 Driver/Software on CD-ROM.
• Quick Installation Guide.
